Practica con ritmos y play-alongs

Source: Documentation/CircularRhythm.md

Canonical State Envelope

A newly created integration template uses:

{
  "bpm": 120,
  "ppq": 960,
  "beatsPerBar": 4,
  "beatUnit": 4,
  "circularTrack": {
    "id": "standalone",
    "type": "CIRCULAR",
    "name": "New Circular Rhythm",
    "config": {
      "engineType": "sampler"
    },
    "audioEngine": {
      "engineType": "sampler"
    },
    "rings": []
  }
}

The web form's initial state is similar but may omit transport fields it can default later. Therefore consumers must apply defaults rather than requiring every optional key.

The only structural requirements enforced by the integration write controller are:

state is an object
state.circularTrack is an object
state.circularTrack.rings is an array
name is non-empty

Ring and step details are normalized for selection and playback, but the persistence column remains flexible.

Timing Interpretation

Transport defaults are normalized for selector output:

bpm: clamped to 40..220
ppq: at least 1
beatsPerBar: at least 1
beatUnit: at least 1

The persisted state may contain broader or malformed values because it is flexible JSON. Playback clients should consume normalized controller/provider output where available and defensively clamp state imported from elsewhere.

For radial geometry, hit testing, and conceptual PLL synchronization, see [Mobile Circular Rhythm Guide](./mobile/CircularRhythmGuide.md). Those client recommendations do not expand the backend wire contract.

Troubleshooting

The rhythm is not in the public catalog

Verify isPublic, owner identity, and repository visibility. Paid status does not make a rhythm public.

Saving updates somebody else's rhythm

It should not. The web controller computes canSaveCurrent from both paid write access and CircularRhythmVoter::EDIT; otherwise it creates a copy.

Rings disappear in selector output

Non-array ring or step values are discarded by normalization. Inspect state.circularTrack.rings.

The wrong sampler loads

Inspect both audioEngine and config. Existing config overlays the default engine. A missing engine intentionally falls back to the bundled MuldjordKit SFZ.

Tags appear different for two users

Owner tags are shared; user tags are viewer-specific overwrites.

Delete returns 404 rather than 403

The web delete action intentionally hides unauthorized object existence by throwing not found when DELETE is denied.

Source: Documentation/PlayAlong.md

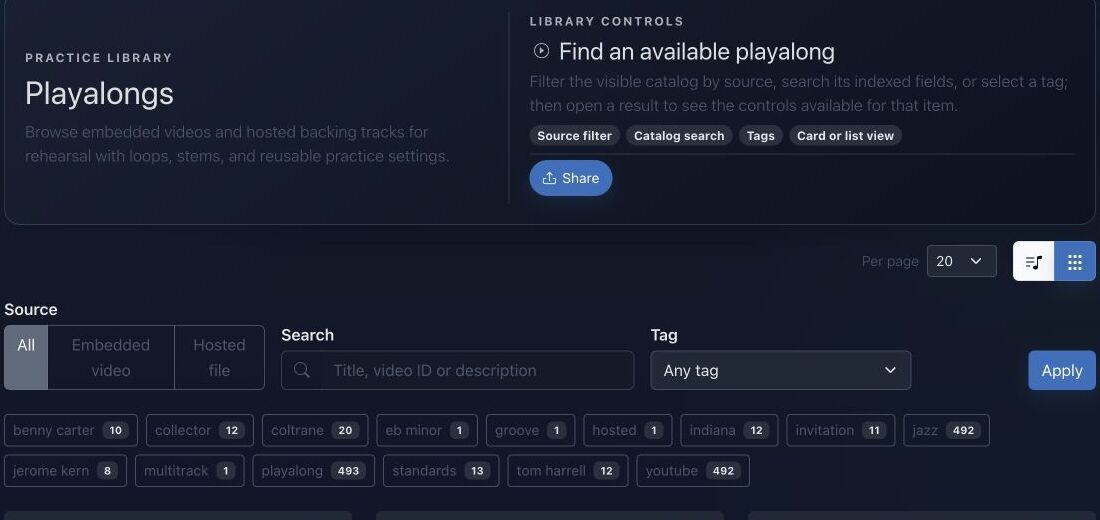

Overview

A PlayAlong is a practice-oriented media aggregate. It can represent:

• an embedded video, especially YouTube;
• one hosted audio file;
• a hosted multitrack session with independent stems;
• linked Harmony context;
• tempo and pitch transformation capabilities;
• user-saved mixer/loop settings.

The aggregate describes what is available. It does not imply that every source supports every transformation. Capability flags, source type, file presence, authorization, and transform-service availability all participate.

Track Model

Each PlayAlongTrack contains:

label
path, mimeType, originalFilename, extension
byteSize, checksum, durationMs
role, instrumentCode, stemType
position
volumeDb, pan
isMuted, isSolo, isPrimary
metadata

Stem types:

full_mix
drums
bass
harmony
melody
click
other

Normalization:

• position is at least zero;
• volume is clamped to -60..+12 dB;
• pan is clamped to -1..+1;
• extension, role, and instrument code are lower-cased;
• tracks are ordered by position, then ID.

Track metadata is flexible. Playback code must use stable fields first and tolerate unknown metadata.

Audio Transform Jobs

Single Transform

POST /api/playalongs/{id}/transform-jobs

The source may be the requested track or the root hosted file. At least one tempo or pitch request is required.

Batch Transform

POST /api/playalongs/{id}/transform-batch

The batch endpoint supports a global tempo ratio/target, global key metadata, and per-track pitch changes.

Important clamps:

tempoRatio: 0.25..4.0
targetTempoBpm: at least 1
pitchShiftSemitones: -24..+24

Transforms require:

• visible PlayAlong;
• authenticated user;
• ownership or paid membership according to canTransformPlayAlong();
• hosted_file source type;
• a source path;
• matching capability flag.

The controller persists jobs with:

queued

and a payload identifying:

processor = python_audio_transform
source path and MIME
source track
PlayAlong
tempo request
pitch request
options

Batch processing runs through PlayAlongAudioTransformService with bounded concurrency. Unchanged tracks can be returned as original without creating a job.

Job Lifecycle

PlayAlongTransformJob status constants cover queued, processing, completed, and failed states. Output includes request parameters, output path/MIME/size, error message, and lifecycle timestamps.

A 202 Accepted single-job response means queued, not completed. Clients must not use an output path until status is completed.

Troubleshooting

Transform returns 422

Check source type, source path, requested change, and the corresponding capability flag.

Transform returns 403

The PlayAlong may be visible but the user lacks ownership/paid transformation rights.

Harmony link is absent from output

The Harmony has its own visibility rule and may be private to another owner.

Multitrack setting cannot save

After normalization, there are no playable tracks. Verify IDs correspond to current PlayAlong tracks.

YouTube looper has no loops

Inspect normalized metadata and saved state. A YouTube video ID alone does not create loop ranges.

Volume or pan changes unexpectedly

Entity setters clamp volume and pan. Saved user mixer state is also normalized against current tracks.

Batch output contains original

That track required neither tempo nor pitch processing. This is a successful skip, not a failed job.

Source: Documentation/mobile/CircularRhythmGuide.md

Synchronized Timing (PLL)

The mobile sequencer uses a Phase-Locked Loop (PLL) approach to ensure the UI and Audio never drift:

• Master Phase: The audio engine (Oboe) maintains a continuous phase value from $0.0$ to $1.0$ for the current bar.
• Needle Interpolation: The playback needle position is calculated as $\theta = (\text{phase} \times 360^\circ) - 90^\circ$.
• Sub-sample Accuracy: By using a float-based phase rather than discrete integer steps, the needle moves with 60fps smoothness regardless of the BPM.

Interaction: Polar Painting

The sequencer supports High-Density Multi-touch Sweeping, allowing users to "paint" rhythm patterns across concentric rings.

• Polar Intersector:
• Radius ($r$): $\sqrt{dx^2 + dy^2}$ identifies the ring index.
• Angle ($\theta$): $((\text{atan2}(dy, dx) \times 180/\pi) + 90 + 360) \pmod{360}$ identifies the step index.
• Tactile Feedback: Every toggled step triggers a TextHandleMove haptic tick.

Theoretical North (Top-Anchor Rule)

• Beat 1 Alignment: Step 0 of every ring MUST be anchored at 12 o'clock (0°).
• Haptic Anchor: Trigger a LongPress haptic pulse exactly as the needle crosses the 12 o'clock position to provide tactile "Downbeat" confirmation.
